| Làm nổi bật: | hot dip galvanized steel grating,25x5 steel grating weight,heavy duty steel grating |
||
|---|---|---|---|

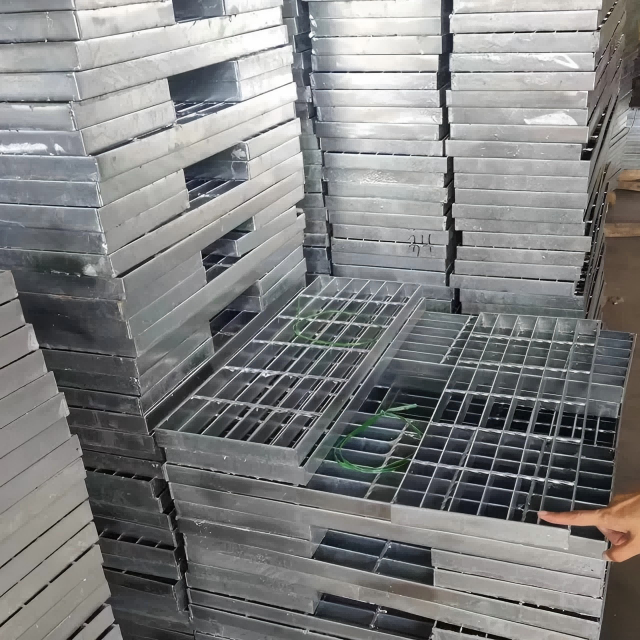

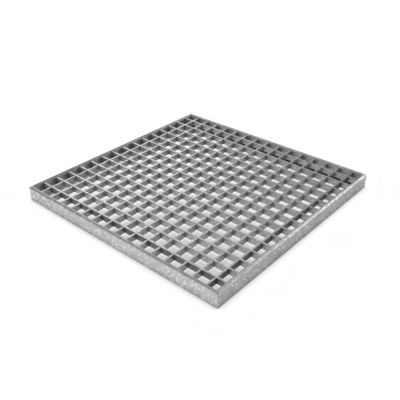

Heavy duty steel grating are made by welding with heavy flat bar and cross/round bars with certain distances. Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties.
Steel grating is hot dip galvanized processing, offers the following advantages: saving materials, saving investment, easy installation, durable in use, light structure, no accumulation of dirt, good performance of ventilation, lighting, heat dissipation, anti-corrosive, anti-acid an alkali corrosion.
| 15-w-4 | Bearing Bars at 15/16" O.C. Cross Bars at 4" O.C. | 15-w-2 | Bearing Bars at 15/16" O.C. Cross Bars at 2" O.C. |
|---|---|---|---|
| 19-w-4 | Bearing Bars at 1-3/16" O.C. Cross Bars at 4" O.C. | 19-w-2 | Bearing Bars at 1-3/16" O.C. Cross Bars at 2" O.C. |
| 22-w-4 | Bearing Bars at 1-3/8" O.C. Cross Bars at 4" O.C. | 22-w-2 | Bearing Bars at 1-3/8" O.C. Cross Bars at 2" O.C. |
| 30-w-4 | Bearing Bars at 1-7/8" O.C. Cross Bars at 4" O.C. | 30-w-2 | Bearing Bars at 1-7/8" O.C. Cross Bars at 2" O.C. |
| 38-w-4 | Bearing Bars at 2-3/8" O.C. Cross Bars at 4" O.C. | 38-w-2 | Bearing Bars at 2-3/8" O.C. |
| Product Name | Steel grating |
|---|---|
| Material | Low carbon steel / Stainless steel |
| Grade | CN: Q235, Q345, US: A36, UK: 43A |
| Standard | CN: YB/T4001-1998, US: ANSI/NAAMM, UK: BS4592-1987, AUS1657-1988, JJS |
| Certification | CE, GOST, ISO9001, ISO14001, HSE |
| Bearing bar size | 50X4,50X5,60X5,75X8,100X8,100X10mm, etc |
| Bearing bar pitch | 20,25,30,32.5,34.3,40,50,60,62,65mm |
| Bearing bar type | Plain, Serrated (tooth-like), I bar (I section), Serrated-I |
| Cross bar size | 6X6, 8X8mm (twisted bar)/5, 6, 8mm (round bar) |
| Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm, etc. |
| Panel size | 3x20ft,3x24ft,3x30ft,5800x1000,6096x1000, as request |
| Surface treatment | Untreated, hot DIP galvanized, cold DIP galvanized, painted, powder coated, pickling, electrolytic polishing, or as customers' requirement. |
| Galvanization Standard | CN: GB/T13912, US: ASTM (A123), UK: BS729 |
| Color | Silver/Black |
Heavy duty gratings are commonly subjected to shock and impact loads and it is highly recommended that all open ends be banded. The welded band bar helps distribute impact loads and minimizes distortion when subjected to repetitive traffic patterns.

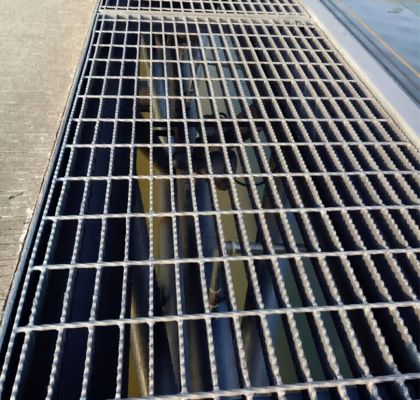

Optional serrated bearing bars enhance skid resistance. Consider this surface for applications subject to the accumulation of liquids or lubricants or inclined grating installations.
