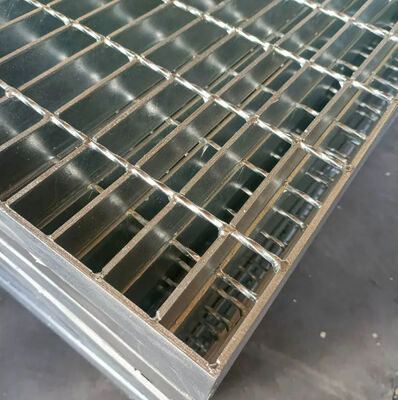

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is intended to hold heavy loads with minimal weight. Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.
| No. | Item | Description |
|---|---|---|
| 1 | Bearing Bar | 20 x 5, 25 x 3, 30 x 3, 30 x 5, 32 x 3, 32 x 5, etc. |
| 2 | Bearing Bar Pitch | 15mm, 25mm, 30mm, 40mm, 50mm, or as customers' requirement |
| 3 | Cross Bar | 5 x 5, 6 x 6 (twisted bar or round bar) |
| 4 | Cross Bar Pitch | 40mm, 50mm, 60mm, 100mm, or as customers' requirement |
| 5 | Flat Bar Type | Plain, serrated (tooth-like), I bar (I-section), serrated I-shape bar |
| 6 | Surface Treatment | Untreated, hot dip galvanized, powder coated, and electro polished, etc. |
| 7 | Steel Grating Standards | China: YB/T4001.1-2007; US: ANSI/NAAMM(MBG531-88); UK: BS4592-1987 |
| 8 | Steel Product Standard | China: GB700-88; US: ASTM(A36); UK: 43A |
| 9 | Hot Galvanized Standard | China: GB/T13912; US: ASTM(A123); UK: BS729 |
