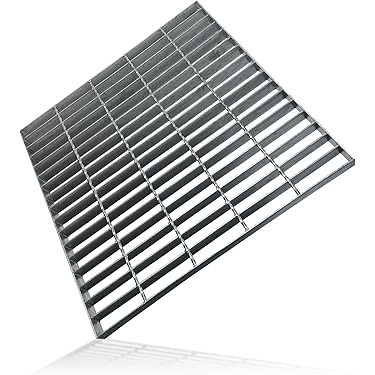

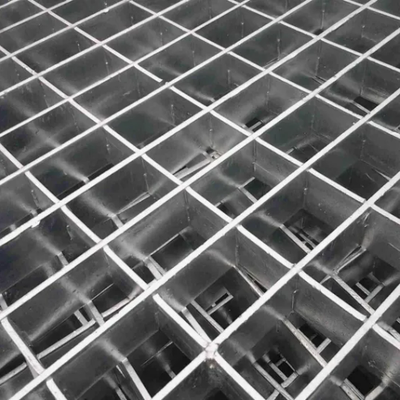

Press-locked steel bar grating is manufactured through a process that includes slotting, pressure lock plug insertion, and finishing. At the intersection points of flat steel and horizontal poles, the horizontal pole is pressed into the loading flat steel and securely fixed. In some applications, flat steel may also be used for the horizontal poles.
This grating is widely used for various industrial applications including flooring, catwalks, mezzanines/decking, stair treads, fencing, vault bin floors, ramps, dock/warehouse surfaces, trench covers, window and machinery safety guards, wash racks, ventilation screens, storage racks, suspended ceilings, and drainage pit covers.
| Material | Carbon Steel Q235, Stainless Steel 304 / 316 |

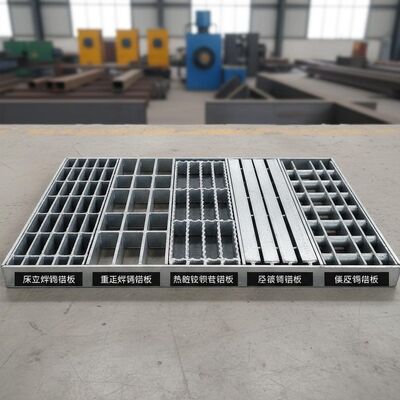

| Type | Press Locked / Flat Bar / Serrated Bar / I Bar |
| Bearing Bar Size | 20 x 3 to 100 x 9 mm; I-section specifications: 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc. |
| Bearing Bar Pitch | 12.5 to 100 mm (30, 40, 60mm recommended, America standard available) |
| Cross Bar Pitch | 18.5 to 101.6 mm (50, 100mm recommended, America standard available) |
| Standard Specification | Bearing flat steel: 25x3mm / Center space: 30mm, 40mm, 50mm, 100mm Horizontal pole: 10x2mm / Center space: 50mm, 100mm |
| Surface Treatment | Untreated / Painting / Hot Dip Galvanizing |
| Steel Standard | China GB700-88 / America ASTM (A36) / Britain ASTM (A36) |
| HDG Standard | China GB/T13912-92 / America ASTM (A123) / Britain BS729 |
| Quality Standard | China YB/T4001-1998, America ANSI/NAAMM (MBG531-88), Britain BS4592-1987, Australia AS1657-1992 |
| No. | Bearing Bar Pitch (mm) | Standard Panel Width (Bearing Bar Thickness 5mm) | Bearing Bar Number (PC) | Remark |
|---|---|---|---|---|
| 1 | 12.5 | 1005 | 81 | Pitch between the two sides are smaller than normal bearing bar pitch |
| 2 | 15 | 1010 | 68 | |
| 3 | 20 | 1010 | 51 | |
| 4 | 22 | 995 | 46 | |
| 5 | 23.85 | 1007 | 43 | |
| 6 | 25 | 1005 | 41 | |
| 7 | 30 | 995 | 34 | |
| 8 | 30.16 | 1000 | 34 | |
| 9 | 30.3 | 1005 | 34 | |
| 10 | 32.5 | 1013 | 32 | |
| 11 | 34.3 | 1000 | 30 | |
| 12 | 35 | 1020 | 30 | |
| 13 | 35.3 | 1029 | 30 | |
| 14 | 40 | 1005 | 26 | |
| 15 | 41 | 1030 | 26 | |
| 16 | 41.4 | 999 | 25 | |
| 17 | 50 | 1005 | 21 | |
| 18 | 60 | 965 | 17 | |
| 19 | 62 | 997 | 17 |
