Thông tin chi tiết sản phẩm:
|

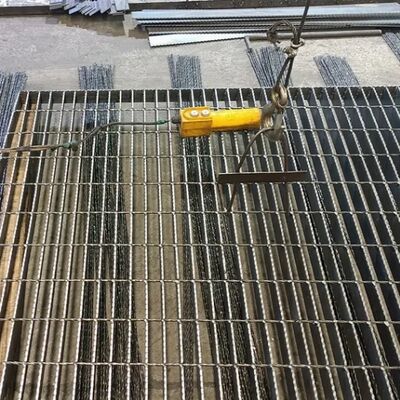

| Làm nổi bật: | Hot Dip Galvanizing Steel Grating,Carbon Steel Serrated Steel Grating,Serrated Plain Bar Welded Steel Grating |
||
|---|---|---|---|
| Material | Low carbon steel, stainless steel, or custom specifications |
| Bearing Bar Specifications | 20 x 3 to 100 x 10 mm; Custom sizes available including 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4 mm |

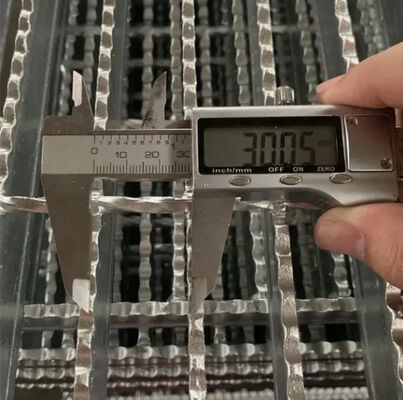

| Bearing Bar Pitch | 12.5, 15, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm or custom specifications |
| Cross Bar Pitch | 38, 50, 76, 100, 101.6 mm or custom specifications |
| Surface Treatment | Natural finish, hot dip galvanizing, paint spraying, or custom requirements |
| Features | Anti-rust, durable, strong, safe, easy installation |
| Packing | Film wrapped with straps, wooden pallet packaging |
| Compliance Standards | China: YB/T4001.1-2007 | USA: ANSI/NAAMM(MBG531-88) | UK: BS4592-1987 | Australia: AS1657-1985 |
| No. | Bearing Bar Pitch (mm) | Standard Panel Width (Bearing Bar Thickness 5mm) | Bearing Bar Number (PC) | Remark |
|---|---|---|---|---|
| 1 | 12.5 | 1005 | 81 | Pitch between the two sides are smaller than normal bearing bar pitch |
| 2 | 15 | 1010 | 68 | |
| 3 | 20 | 1010 | 51 | |
| 4 | 22 | 995 | 46 | |
| 5 | 23.85 | 1007 | 43 | |
| 6 | 25 | 1005 | 41 | |
| 7 | 30 | 995 | 34 | |
| 8 | 30.16 | 1000 | 34 | |
| 9 | 30.3 | 1005 | 34 | |
| 10 | 32.5 | 1013 | 32 | |
| 11 | 34.3 | 1000 | 30 | |
| 12 | 35 | 1020 | 30 | |
| 13 | 35.3 | 1029 | 30 | |
| 14 | 40 | 1005 | 26 | |
| 15 | 41 | 1030 | 26 | |
| 16 | 41.4 | 999 | 25 | |
| 17 | 50 | 1005 | 21 | |
| 18 | 60 | 965 | 17 | |
| 19 | 62 | 997 | 17 |
