Thông tin chi tiết sản phẩm:
|
| Làm nổi bật: | galvanized serrated steel grating,anti-slip steel grating platform,HDG ocean platform grating |
||
|---|---|---|---|

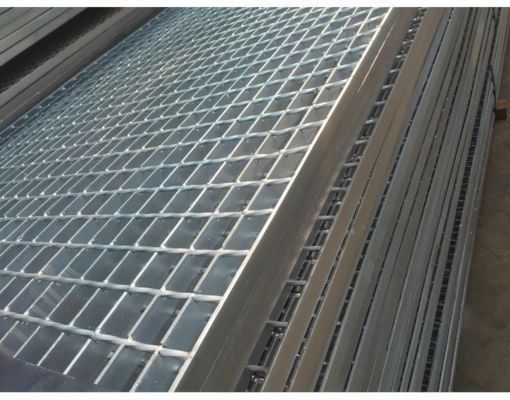

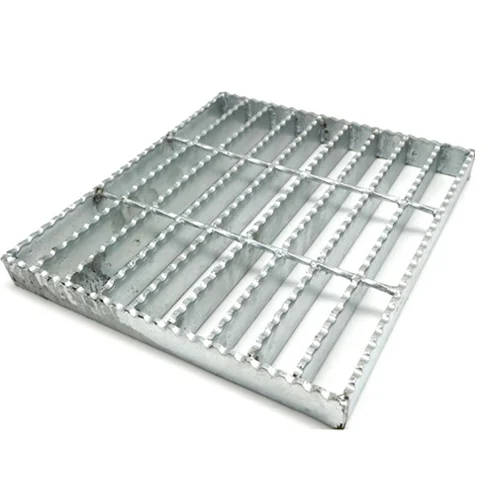

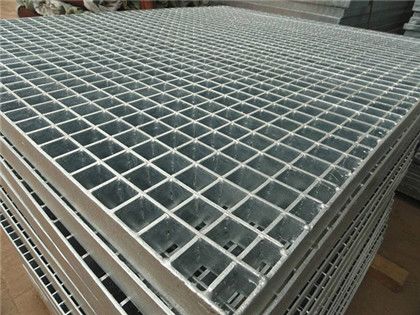

Steel Grating is welded bearing steel bars and cross twisted bars according to required pitch space between steel bars by steel grating welding machines. It is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistant with great anti-slip performance.
Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.
Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.
Steel Grating can be called hot-dip galvanized steel grating or stainless steel gratings. Beautiful surface appearance and excellent performance in industry construction projects.
| Item | Specifications of Bearing Bar (mm) | Diameter of Cross Bar (mm) | Pitch of Bearing Bar (mm) | Pitch of Cross Bar (mm) |
|---|---|---|---|---|
| SG253 | 25x3 | 6 | 20,30,40,50 | 50,100 |
| SG254 | 25x4 | 6,8 | 20,30,40,50 | 50,100 |
| SG255 | 25x5 | 6,8 | 20,30,40,50 | 50,100 |
| SG304 | 30x4 | 8 | 20,30,40,50 | 50,100 |
| SG305 | 30x5 | 8 | 20,30,40,50 | 50,100 |
| SG355 | 35x5 | 8 | 20,30,40,50 | 50,100 |
| SG404 | 40x4 | 8 | 20,30,40,50 | 50,100 |
| SG405 | 40x5 | 8 | 20,30,40,50 | 50,100 |
| SG455 | 45x5 | 8 | 20,30,40,50 | 50,100 |
| SG505 | 50x5 | 8 | 20,30,40,50 | 50,100 |
| SG605 | 60x5 | 8 | 30,40,50,60 | 50,100 |
| SG705 | 70x5 | 8 | 30,40,50,60 | 50,100 |
