Thông tin chi tiết sản phẩm:
|

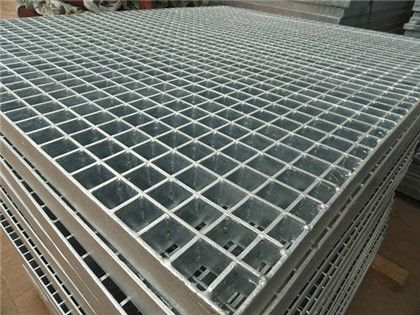

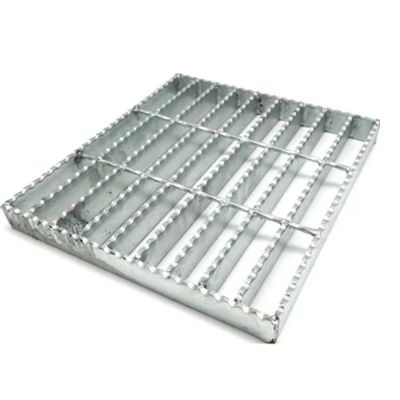

| Làm nổi bật: | galvanised serrated steel grating,platform steel floor grating,serrated steel grating for platforms |
||
|---|---|---|---|
The specification of plain type and serrated type bearing bar is 25 x 3 to 100 x 8; The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
12.5, 25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available <1'' x 3/16'', 1 1/4'' x 3/16'', 1-1/2'' x 3/16'', 1'' x 1/4'', 1-1/4'' x 1/4'', 1 1/2'' x 1/4''(19-w-4) and so on. >
Mild Steel (Low Carbon Steel) or Stainless Steel
Untreated, Painting or Hot dip galvanizing
| Load 3kPa/Deflection 5mm | Load 4kPa/Deflection 5mm | Load 5kPa/Deflection5mm | |||
|---|---|---|---|---|---|
|
Span(mm) 1500 1800 2100 2400 2800 |
Steel Grating Type G255/30/100 G325/30/100 G405/30/100 G505/30/100 G655/30/100 |
Span(mm) 1400 1710 1780 2030 2350 2400 |
Steel Grating Type G255/30/100 G325/30/100 G403/30/100 G405/30/100 G505/30/100 G655/30/100 |
Span(mm) 1200 1500 1800 2100 2400 2800 |
Steel Grating Type G255/40/100 G325/40/100 G405/30/100 G505/30/100 G655/30/100 G756/30/100 |
