| Làm nổi bật: | galvanized steel stair treads,non-slip steel grating treads,industrial stair treads with nosing |
||
|---|---|---|---|

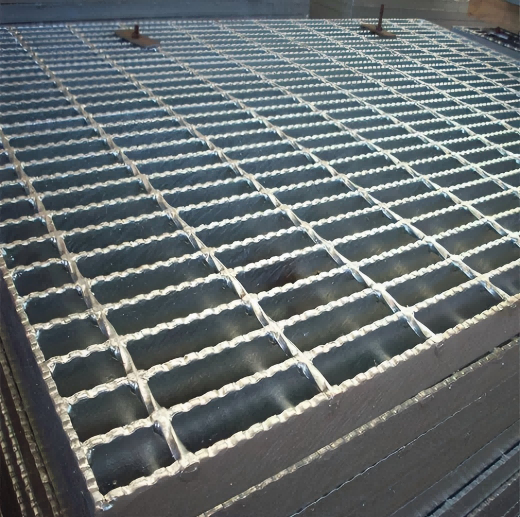

Hot DIP galvanized steel grating has three kinds of steel gratings: Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating.

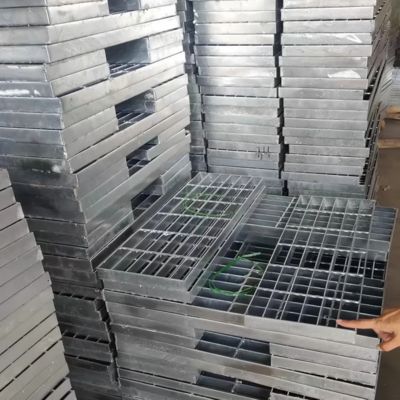

Stair treads steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlocks process such as processing and into customer requirements finished products. It's usually used in industrial construction projects.
We have 4 types to choose from: welded fixing stair treads, clip fixing galvanized stair treads, checker plate stair treads.
They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc.
We can design and manufacture standard steel grating and in customized shapes per client's requirements.
| Product Name | Steel Grating |
|---|---|
| Material | Low Carbon Steel |
| Surface treatment | Black, Hot dip galvanized, Painted, Powder coated |
| Type | Plain/ I/ serrated style |
| Height of bearing bar | 1'', 1 1/4'', 1 1/2'', 2''(20, 25, 30, 32, 40, or 50mm) etc. |
| Thickness of bearing bar | 1/8'', 3/16'', 1/4''(3, 4, or 5mm) etc |
| Pitch of bearing bar | 1''-4''(25, 30,35, 40, 50, or 60mm) |
| Pitch of cross bar | 2''-4''(30, 40, 50, or 100mm) |
| Diameter of cross bar | 5x5, 6x6, or 8x8mm |
| Application | Industrial Platform, walkway |
