Thông tin chi tiết sản phẩm:
|

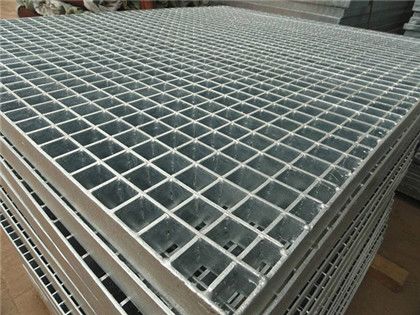

| Làm nổi bật: | rust-proof galvanized steel grating,serrated steel grating platform,galvanized steel grating with warranty |
||
|---|---|---|---|

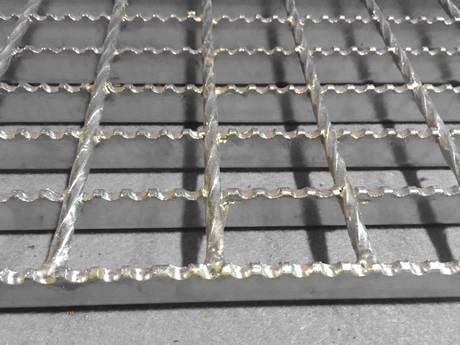

Serrated steel grating is ideal for wet environments or areas requiring enhanced non-slip properties. The serration process involves carving patterns into the bars, which can be applied to control bars, filler bars, or both directions as needed.
| Item | Description |
|---|---|
| Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc. US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc. |
| Bearing Bar Pitch | 12.5, 15, 20, 25, 30, 32, 35, 38, 40, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. Note: 19-W-4 is most popular (19/16 inch x 4 inch opening = 30x100mm opening) |
| Twisted Cross Bar Pitch | 50, 60, 76, 100, 120mm etc. US standard: 2' & 4' etc. |
| Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |

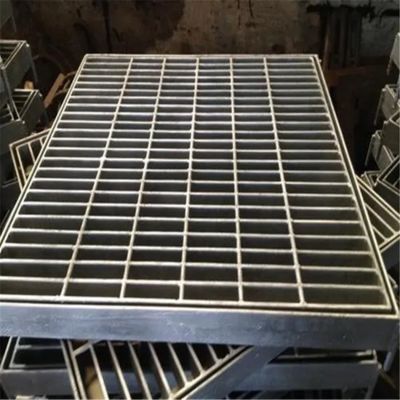

Serrated steel grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. In addition to its high strength and light weight, this type of grating also has non-slip characteristics, no sharp edges and serrations are rolled on, to meet strict health and safety requirements. Hot rolled serrations help stop lacerations if someone falls on the grating.
| No. | Bearing Bar Pitch (mm) | Standard Panel Width (Bearing Bar Thickness 5mm) | Bearing Bar Number (PC) | Remark |
|---|---|---|---|---|
| 1 | 12.5 | 1005 | 81 | Pitch between the two sides are smaller than normal bearing bar pitch. |
| 2 | 15 | 1010 | 68 | |
| 3 | 20 | 1010 | 51 | |
| 4 | 22 | 995 | 46 | |
| 5 | 23.85 | 1007 | 43 | |
| 6 | 25 | 1005 | 41 | |
| 7 | 30 | 995 | 34 | |
| 8 | 30.16 | 1000 | 34 | |
| 9 | 30.3 | 1005 | 34 | |
| 10 | 32.5 | 1013 | 32 | |
| 11 | 34.3 | 1000 | 30 | |
| 12 | 35 | 1020 | 30 | |
| 13 | 35.3 | 1029 | 30 | |
| 14 | 40 | 1005 | 26 | |
| 15 | 41 | 1030 | 26 | |
| 16 | 41.4 | 999 | 25 | |
| 17 | 50 | 1005 | 21 | |
| 18 | 60 | 965 | 17 | |
| 19 | 62 | 997 | 17 |
